Part Number: 6600-094
Brand: Sundance Spas
Sundance® 880 Series Power Control Assembly – 2002+ Maxxus®, 2‑Pump with PermaClear® UV
⚠️ IMPORTANT DISCLAIMER – PLEASE READ BEFORE PURCHASING
There are no refunds or returns on electronic spa parts, including control panels and keypads.
Please verify compatibility with your hot tub model before ordering.
All electronic components are covered under the original manufacturer’s warranty.
Overview
This Sundance® PWA Control Assembly is the complete OEM equipment pack used in 2002 and newer Maxxus® spas configured with:
- 2‑Pump hydrotherapy system
- PermaClear® UV water management
-
NT‑Series Sundance® control architecture (New Technology platform)

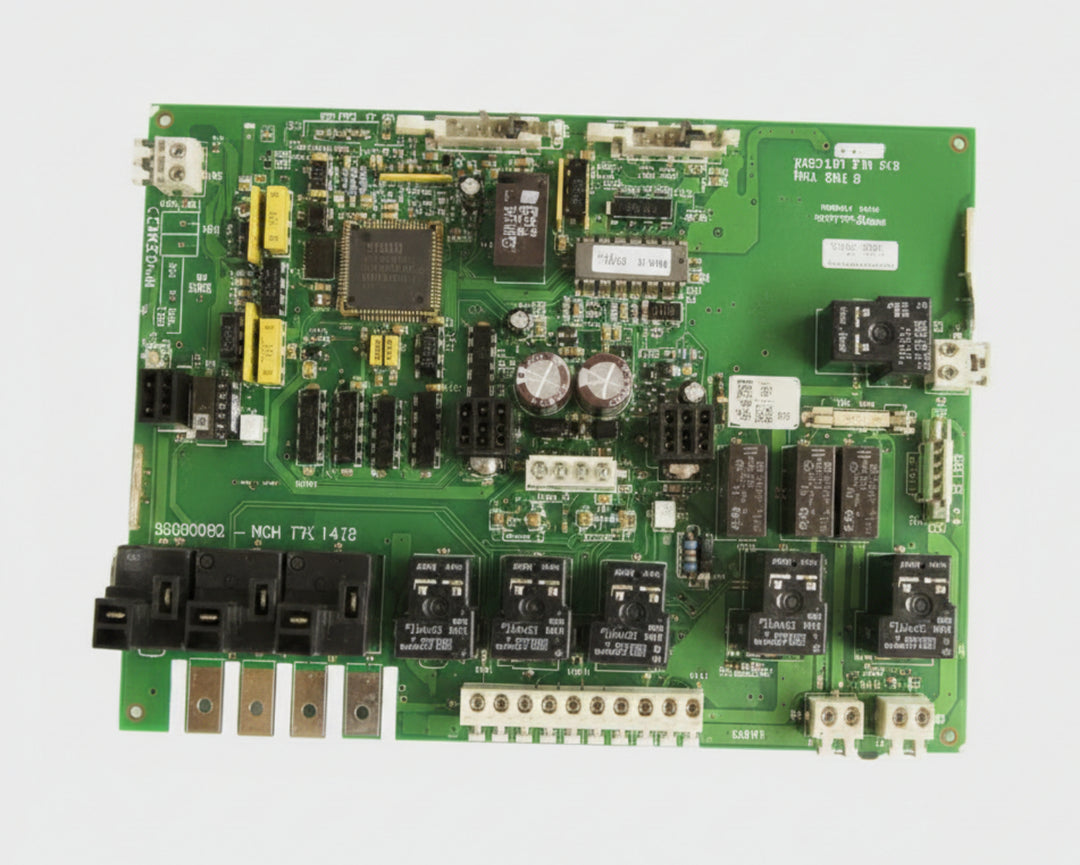

The assembly integrates the system circuit board, heater terminals, sensor inputs, PermaClear UV logic channels, and circulation/heater sequencing for all Maxxus® builds produced after the 2002 upgrade cycle.
This PWA replaces several early 880 Series electronics packages (6600‑0xx family) and allows full compatibility with the Maxxus® dual‑pump jet layout and the PermaClear® sanitation system.
Compatible Spa Models & Years
✔ Sundance® 880 Series
Maxxus® — 2002 through early 2008, and service‑replacement compatible through later NT years.
The 2002 redesign introduced:
- PermaClear® UV
- Updated NT‑series logic boards
- The first generation of modular Sundance® PWAs
This assembly is used in:
- Maxxus® 2002
- Maxxus® 2003
- Maxxus® 2004
- Maxxus® 2005
- Maxxus® 2006
- Maxxus® 2007
- Maxxus® 2008 (pre‑Smart Logic revisions)
These spa years mapped to the early NT logic boards 6600‑094, 6600‑098, 6600‑155, 6600‑160, all listed as part of the same PCB family.
Technical Details
-
System Type: Sundance® NT‑Series Control System (New Technology Platform)
-
Pump Configuration:
-
Pump 1: 2‑speed
-
Pump 2: 1‑speed
-
Sanitation System: Full support for PermaClear® UV logic
-
Topside Panel Compatibility:
- Early Sundance® LCD topside controls (880 Series)
-
Heater Support: 5.5 kW flow‑through heater tube (legacy Sundance® heater family)
-
Sensor Support:
- Temperature sensor
- Hi‑limit / safety sensor
- Flow/pressure switch dependencies (varies by revision)
-
Electrical:
- 240 Volt standard
- Supports 50A/60A logic via jumper setting
-
Board Logic:
- Pump thermal lockout
- UV counter & indicator light logic
- Filter cycle scheduling
- Spa watchdog safety (ILOC / OH / FLO detection)
Purpose & Performance
The PWA Control Assembly (2‑Pump, PermaClear) manages:
- High‑flow Maxxus® dual‑pump hydrotherapy
- 5.5 kW heater sequencing & safety shutoffs
- UV PermaClear® sanitation timing & indicator lights
- Low‑speed circulation and filtration cycles
- LCD topside logic, including error logs
- Temperature control & monitoring
Replacing an aging NT‑series control box resolves:
- No‑heat conditions
- Intermittent pump operation
- UV indicator faults
- FLO / OH / ILOC logic problems
- Topside display communication failures
Superseded / Interchangeable Components
This PWA assembly replaces or works with:
| Part Number |
Description |
| 6600‑094 |
Early NT‑firmware board variant |
| 6600‑098 |
NT board variant (same family) |
| 6600‑155 |
Updated Maxxus NT board (REV 9.61A+) |
| 6600‑160 |
Later Maxxus NT board (REV 9.61B+) |
| 6600‑392 |
Modern 3‑pump NT replacement PCB (not for 2‑pump Maxxus units) |
Related Components
- 5.5 kW heater tube (6500‑310 / 6500‑305 / 6500‑420 series)
- Sundance® 880 topside control panel
- Temperature + hi‑limit sensors (6600‑110 / 6600‑167)
- PermaClear® UV lamp & ballast
Ordering Notes
- Designed ONLY for 2002+ Maxxus® spas with 2 pumps and PermaClear®.
- Not compatible with:
- 2012+ Smart Logic 880 Series
- 3‑pump NT systems (Maxxus post‑revision / Aspen)
- 780, 680, 980 Series control systems
- Verify spa serial number to confirm correct revision.
- All Sundance® PWAs and circuit boards are non‑returnable,Manufacturer's warranty is honored.
