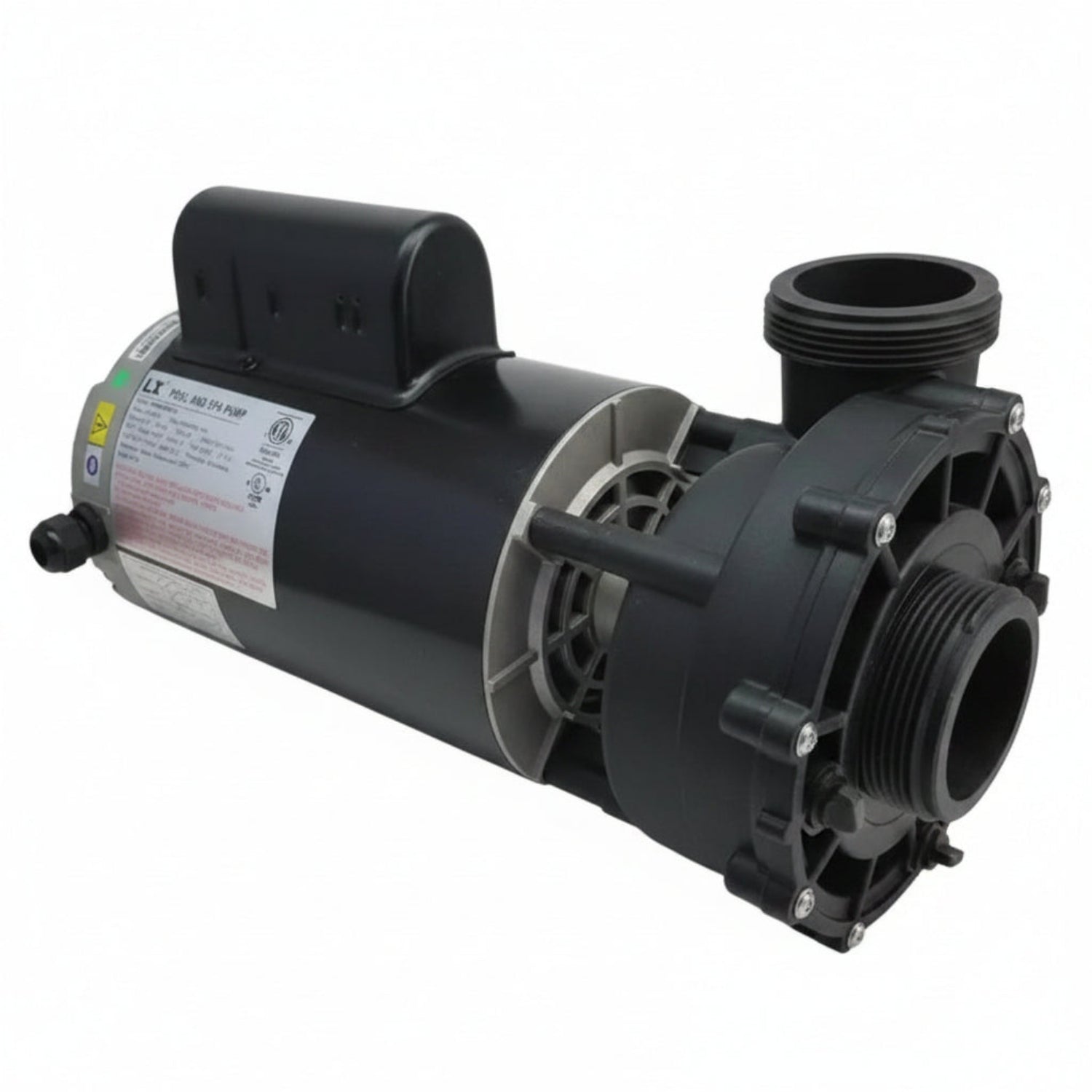

Part Number: 6500-352s
Brand: Sundance Spas
Compatibility:
- Works in 2005 to 2019 880 Series Sundance Spas
- 2017 980 Series
- 2011+ Select Series
- 2012+ 680 Series
- 2013+ 780 Series Certa
- 2010+ 780 Series Chelsee
- 2010+ Hartford and Hamilton
- Jacuzzi Spas J-400 Series 5/2009+
- Jacuzzi Spas J-480 2008
- Replaced 6500-901, 6500-902, 6500-903
- If your spa was built in 2006 or earlier purchase the universal mounting bracket part number 6000-535.
- Rotatable wet end
Specifications:
-
Horsepower: 2.5HP / 4.0 HP
-
Voltage: 230v
-
Amps: 12.0
-
Frame Size: 56Y
- HZ Rating: 60HZ
- Intake Size: 2" MBT (Measures 3" OD)
-
Discharge Size: 2" MBT (Measures 3" OD)
- Discharge Location: Side
-
Flow Rate: 202 GPM
-
Single Speed
Product Features:
- 80,000 capacitor charge-discharge cycle tests, and thermal protector from Texas Instruments.
- Excellent quality copper winding motor
- Anti-Creep Bearing for longer & quiet operation.
- 6 Month Manufacturers Warranty free from defect
Can Replace the following Pump Models:
- 6500-352
- 6500-363
- 6500-365
- Older Jacuzzi Theraflo and Piranha models.
Alternate Part Numbers:
6500-352, SD6500-352, 6500-363, SD6500363, 6500363, SD6500-363
